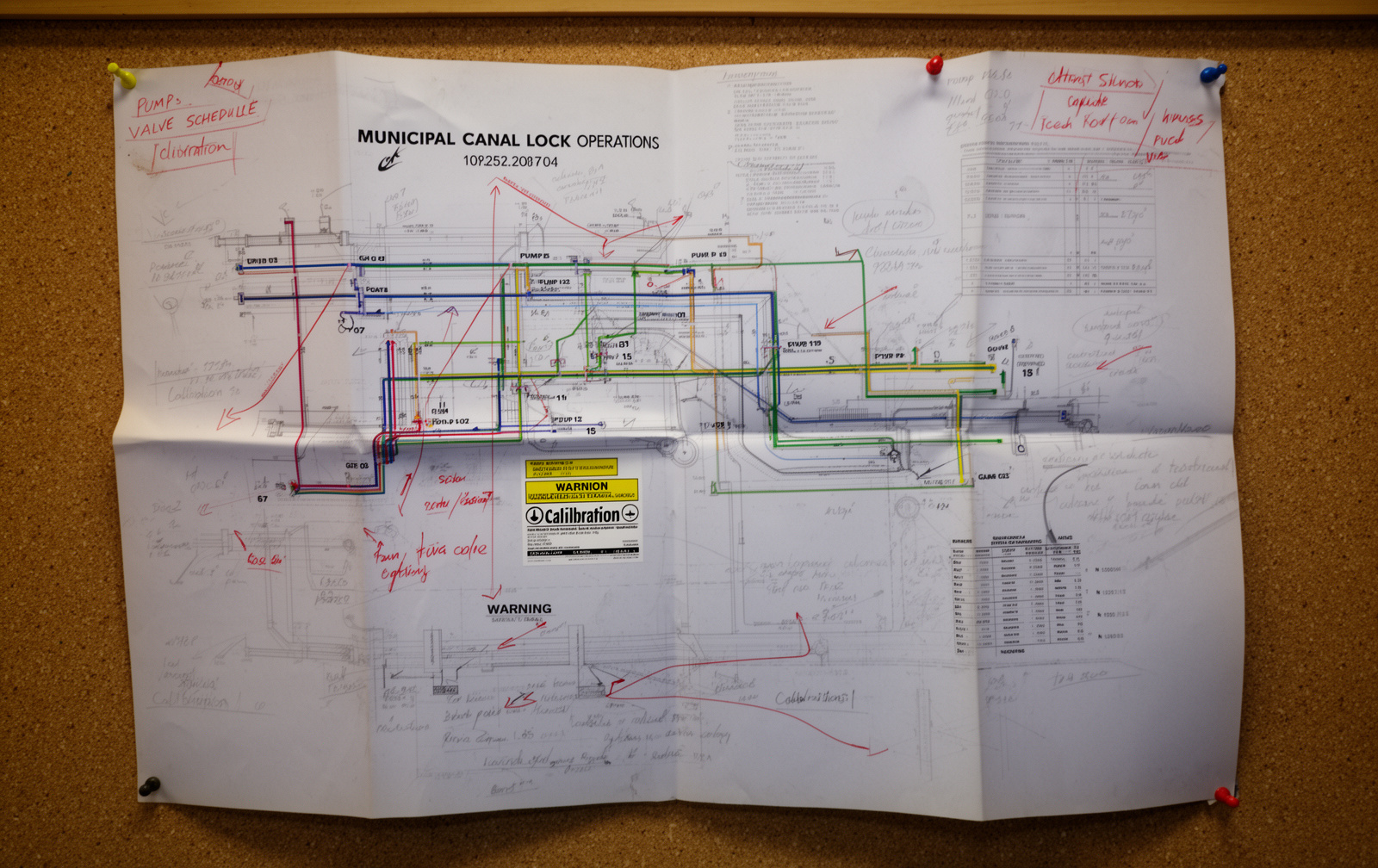

Canal Lock Operations Schematic — Analysis

Reading-quality caveat (read first): This is a photographed, folded, and heavily over-annotated paper schematic. The printed base text and the great majority of handwritten notes are not legibly resolvable at this image quality. Almost every alphanumeric ID below is partially or wholly illegible. I have transcribed only what I can defend and tagged everything else UNCERTAIN. Where I provide engineering logic (Sections 5–6), it is explicitly inference, not read from the page.

---

1) Plain-language summary

Direct evidence: The title block reads "MUNICIPAL CANAL LOCK OPERATIONS" with a sub-number that appears to be 109.252.208704 (UNCERTAIN). The drawing is a process/piping-and-control schematic showing multiple pumps, gates, and interconnecting runs traced over in blue, green, orange/yellow, and red highlighter — strongly suggesting separate fluid circuits and/or power-and-signal paths. A yellow WARNING / Calibration label is affixed mid-sheet, and "WARNING" is repeated lower on the drawing.

Plausible interpretation (INFERENCE): This documents the control and fluid system for a municipal canal lock chamber — i.e., the pumps and gate actuators that fill/drain the lock and open/close the lock gates, plus associated valves, sensors, and electrical feeds. The red handwriting (top-left: "PUMPS / VALVE SCHEDULE / Calibration") indicates the sheet is being used as a working commissioning or calibration reference, not a clean as-built.

---

2) Inventory of visible components

Type	Apparent label	Location on sheet	Confidence
Pump	"PUMP B"	Center-top	Medium
Pump	"PUMP P-19" / "PUMP P 19"	Right of center, top	UNCERTAIN
Pump	"PUMP 122"	Center	UNCERTAIN
Pump	"PUMP P-2" or "PUMP 102"	Lower-center	UNCERTAIN
Pump	"PUMP P-9" / "P19 P9"	Right-center	UNCERTAIN
Pump	unlabeled symbol(s)	Multiple	—
Gate	"GATE 03"	Left	UNCERTAIN
Gate	"GATE B"	Center (referenced in red)	UNCERTAIN
Gate	"GATE 119" / "GATE B19"	Center	UNCERTAIN
Gate	"GATE 03" / "GAME 03"	Lower-right	UNCERTAIN
Valve	circle symbol marked "07"	Left-center	UNCERTAIN
Valve	numerous unlabeled valve symbols	Throughout	—
Sensor/instrument	tag bubbles with "15", "81", "67"	Scattered	UNCERTAIN — could be valve, gauge, or loop tags
Power feed	colored line runs (blue/green/orange/red)	Throughout	Cannot confirm which are power vs. fluid
Data table	parameter table, top-right	Top-right	Rows present but values illegible
Data table	second table	Right-center/lower	Illegible
Safety label	"WARNING / Calibration" sticker	Center	High (sticker present); body text illegible

Important: I cannot confirm a component explicitly labeled "Pump P-3" or "Gate B" as called out in your question (Section 5). The closest readable tags are listed above and are UNCERTAIN. Section 5 therefore treats P-3 / Gate B as named hypotheticals.

---

3) Dependency map (bullet form)

Caveat: Connectivity below is inferred from highlighter routing and from standard lock architecture, not from legible line-by-line tracing.

• Power feeds → Pumps → Gate actuators / fill-drain circuits
  • Colored runs appear to fan out from a left-side source area toward pump and gate symbols (INFERENCE).
• Pumps → Lock chamber level
  • Fill/drain pumps drive chamber water level; gate operation is gated on level equalization (standard lock interlock — INFERENCE).
• Gates ↔ Level sensors
  • Gate "open" permissive normally depends on level/pressure equalization sensors (the "15/81/67" bubbles are candidate loop tags — UNCERTAIN).
• Valves → Pump suction/discharge isolation
  • Valve symbols (e.g., "07") sit inline on pump runs, implying isolation/throttling dependency (INFERENCE).
• Calibration label → entire instrument set
  • The Calibration sticker plus repeated "Calibration" notes imply sensors/valves are pending or mid-calibration, so automatic interlocks may not be fully trustworthy right now (INFERENCE — operationally significant).

---

4) Handwritten note conflicts & ambiguities

• Pervasive illegibility: Most red/blue cursive notes (left margin, lower area, top-right) cannot be transcribed. Do not assume any of them are non-critical. (UNCERTAIN)
• Repeated "Calibration": Appears top-left (red), on the yellow sticker, and lower-right — suggesting calibration status is inconsistently recorded across the sheet (which items are done vs. pending is unclear). Conflict risk: HIGH.
• Two "WARNING" indications: The yellow sticker reads "WARNION/WARNING" and a separate "WARNING" appears lower; their body text differs and neither is readable — possible conflicting or superseded safety notes.
• Duplicate gate IDs: "GATE 03" appears to be used in two different locations (left and lower-right). Either a numbering reuse or a transcription error — must be resolved before acting on any "GATE 03" instruction. (UNCERTAIN)
• Pump ID ambiguity: "P-2 / 102," "P-19 / P-9," "122" — the pump numbering is inconsistent between print and handwriting; risk of misidentifying a pump during a procedure. (UNCERTAIN)
• Title sub-number (109.252.208704) reads like an IP/asset string but is unverifiable. (UNCERTAIN)

---

5) Most likely failure sequence — P-3 loses power while Gate B is closed

This is engineering INFERENCE. Neither "P-3" nor "Gate B" is confirmed legible on the sheet; treat as a scenario, not a read fact.

1. Loss of P-3 output → the fill/drain duty it serves stops; chamber level change halts or reverses (if P-3 was holding against a head).
2. Gate B closed = chamber isolated → no gravity equalization path through that gate; differential head across Gate B persists.
3. Level/pressure imbalance → upstream or downstream level diverges from setpoint; level sensors (candidate tags 15/81/67) flag deviation.
4. Interlock response (IF calibrated): gate-open permissives lock out — Gate B cannot be safely opened against the un-equalized head. BUT per the Calibration notes, interlocks may be untrusted → manual verification required.
5. Backflow / check-valve loading: with P-3 dead, discharge check valves and isolation valve ("07"?) take reverse pressure; risk of seal/check leak-back into the chamber.
6. Cascade risk: standby/parallel pump (P-2 / P-19?) may auto-start to cover duty → possible overload of shared power feed if P-3's fault is electrical (breaker trip propagation).
7. Worst case: if no standby and Gate B stays sealed, the lock becomes unable to equalize → vessel transit blocked and sustained differential head on a closed gate (structural/seal stress).

---

6) Prioritized operator checklist — next 30 minutes

Priority 1 — Safety & isolation (0–5 min)

1. Confirm P-3 actual power status at the panel; identify if breaker tripped vs. upstream feed loss.
2. Do NOT command Gate B open until head differential across it is confirmed equalized by an independent (manual) reading — interlocks are calibration-suspect.
3. Verify the two "WARNING" notices for any active lockout/tagout before touching equipment.

Priority 2 — Stabilize (5–15 min) 4. Confirm whether a standby pump (P-2 / P-19 — UNCERTAIN IDs) auto-started; check shared feed amperage for overload. 5. Check discharge check valve / isolation valve "07" (UNCERTAIN) for back-leakage; isolate P-3 if leaking. 6. Manually log upstream and downstream levels to establish the real differential across Gate B.

Priority 3 — Diagnose & resolve ID ambiguity (15–25 min) 7. Resolve the duplicate "GATE 03" and pump numbering ambiguities against the master valve/pump schedule before any switching. 8. Restore P-3 only after fault root-cause (electrical vs. mechanical) is known.

Priority 4 — Document & escalate (25–30 min) 9. Record the calibration status of all level/pressure loops; flag any interlock you had to bypass manually. 10. Escalate to supervising engineer if Gate B cannot be safely equalized or if shared power feed is overloaded.

---

Confidence summary

• High: Document is a municipal canal-lock ops schematic; it is annotated; a calibration/warning sticker is present; multiple pumps and gates exist.
• Medium/Low: Any specific ID (pumps, gates, valves, the title number).
• Inference only: All connectivity (Section 3), the failure cascade (Section 5), and the checklist logic (Section 6).

If you can supply a higher-resolution or de-skewed scan of specific quadrants, I can convert many of the UNCERTAIN tags into verified reads.

Shipment Damage Assessment

Prepared for: Museum Registrar / Insurance Reviewer Document type: Incoming condition / triage report Basis: Single photographic frame; no physical inspection performed

---

1) Visible Evidence Inventory

Directly observed in image:

• Wooden crate (pine/plywood construction), open-faced, resting on its side on a grey worktable. Lid/cover battens appear detached and resting on top of the crate rather than fastened.
• Ceramic vessel (small narrow-necked jar/pot, buff/tan color) seated upright on white foam inside the crate. Visible dark crack lines radiate across the body and around the neck/shoulder — a clear network of fracture lines is present on the surface.
• White polyethylene/PE foam blocks used as internal cushioning, partially cut/fitted; arrangement appears loose and not fully conforming to the object.
• Loose stone/ceramic fragments resting directly on the foam inside the crate (no individual wrapping visible).
• Three sealed clear plastic bags on the table containing additional stone/pottery fragments, each with a paper label inside.
• Black electronic device (handwritten card nearby reads "SHOCK SENSOR") — consistent with an impact/shock indicator, condition/state not legible.
• Small white device with cabling (lower center) — possibly a second sensor or data logger; label not legible.
• Yellow tape measure (scale tool).
• Blue nitrile gloves (one pair), unused appearance.
• Multiple paper forms — printed multi-field documents (condition reports / chain-of-custody / shipping paperwork). Text largely illegible at this resolution.
• Handwritten index cards partially legible: "SHOCK SENSOR," "CHAIN OF CUSTODY," "HUMIDITY / TEMPERATURE," and bag labels.
• Background: laboratory/collections storage area with shelving, white archival trays/boxes, additional tools.

Not determinable from image: sensor trigger status, exact fragment counts, label text, weights, prior condition baseline.

---

2) Suspected Damage Mechanisms (with confidence)

Mechanism	Confidence	Reasoning
Pre-existing or in-transit fracturing of the ceramic vessel	Medium-High	Crack network is clearly visible on the body/neck. Cannot determine from one image whether these are old/stable cracks, restoration joins, or new transit damage.
Object fragmentation / detached sherds	Medium	Loose fragments present both inside crate and bagged. May be associated sherds of the vessel OR separate accessioned artifacts — unclear.
Inadequate / non-conforming cushioning	Medium	Foam blocks appear loose and not custom-cavity-cut to the vessel; vessel sits on a flat foam surface, allowing potential movement/tipping.
Shock/impact event during transit	Low-Medium (Unverified)	A shock sensor is present, implying impact monitoring was intended. Its triggered/untriggered state is not readable — this is the single most important unverified data point.
Loose fragments contacting object (abrasion risk)	Low-Medium	Unwrapped fragments resting on shared foam could rub or impact the vessel.
Climate/humidity exposure	Low (Unknown)	A temperature/humidity card is referenced; no readings visible.

---

3) Immediate Handling Risks

• Fragile cracked ceramic — the visible fracture network means the vessel may be structurally unstable; lifting by the rim/neck could cause failure.
• Loose unsecured fragments that may shift, fall, or be lost during movement of the crate.
• Open, possibly unsecured crate — the lid is detached; the assembly should not be lifted or transported in current state.
• Mixed object/fragment provenance risk — fragments inside vs. bagged could be confused or co-mingled, threatening accession integrity.
• Sensor data perishability — shock/climate logger data could be lost or overwritten if not read and recorded promptly.

---

4) Missing Information Needed From Staff

1. Shock sensor status — was it triggered? Photograph/record the indicator immediately.
2. Climate logger readings — temp/humidity range during transit.
3. Incoming condition report / baseline images — are the vessel cracks pre-existing (documented prior) or new?
4. Accession/inventory list — how many fragments expected; do bagged fragments correspond to this object or separate items?
5. Label/form transcription — full text of the paper documents and bag labels.
6. Chain-of-custody record — handoff signatures, transit duration, carrier.
7. Whether any disassembly/unpacking has already occurred (i.e., is current layout "as received" or partially unpacked by staff?).

---

5) Recommended Triage Actions (Priority Order)

1. Do not move the crate or vessel until condition is documented and sensors read. Stabilize in place.
2. Read and photograph the shock sensor and climate logger before any further handling; record values to the condition file.
3. High-resolution detail photography of the vessel cracks (raking light), all fragments, and all labels/forms for the permanent record.
4. Transcribe all paperwork and bag labels; reconcile fragment counts against the accession/packing list.
5. Segregate and individually support loose fragments (cushioned trays, no co-mingling) and confirm whether they belong to the vessel.
6. Stabilize the vessel — assess crack stability before lift; use both-hands/under-base support, gloves (already staged), and a padded transfer tray. Defer lifting to a conservator if instability suspected.
7. Quarantine for conservator review — flag the ceramic for structural assessment before exhibition or further transport.
8. Open a damage/discrepancy claim file if cracks are confirmed new or fragment counts don't match.

---

6) Concise Insurance Summary

A ceramic vessel received in an open wooden crate displays a visible network of cracks across its body and neck; whether these are pre-existing or transit-related cannot be determined from the image alone and requires comparison to the incoming/pre-shipment condition report. Internal cushioning appears loose and non-conforming, and unwrapped loose fragments are present, indicating possible packing inadequacy and elevated handling risk. A shock sensor and climate logger accompanied the shipment but their readings are not yet recorded — these are critical to establishing whether a damaging event occurred in transit. Recommendation: withhold final liability determination pending (a) sensor data, (b) baseline condition comparison, and (c) fragment reconciliation. Object is currently classified at-risk / fragile and requires conservator stabilization. No conclusion of total loss is supported by available evidence.

---

7) JSON Object

{
  "item_condition": {
    "primary_object": "ceramic vessel with visible crack network on body and neck",
    "stability": "uncertain - possibly fragile/unstable",
    "associated_fragments": "loose fragments present inside crate and in 3 sealed bags; provenance/count unverified",
    "damage_origin": "undetermined (pre-existing vs transit) - baseline comparison required",
    "confidence": "medium"
  },
  "packaging_condition": {
    "crate": "open wooden crate, lid/battens appear detached/unsecured",
    "cushioning": "PE foam blocks, loose and non-conforming to object",
    "fragment_protection": "inadequate - unwrapped fragments on shared foam",
    "assessment": "suboptimal / inadequate"
  },
  "visible_labels": [
    "SHOCK SENSOR (handwritten card)",
    "CHAIN OF CUSTODY (handwritten card)",
    "HUMIDITY / TEMPERATURE (handwritten card)",
    "bag labels present but text illegible",
    "multiple printed forms - text not legible at resolution"
  ],
  "risk_level": "high",
  "next_actions": [
    "Do not move crate or vessel until documented",
    "Read and photograph shock sensor and climate logger immediately",
    "High-resolution detail photography of cracks, fragments, labels",
    "Transcribe all paperwork; reconcile fragment counts to accession list",
    "Segregate and individually support loose fragments",
    "Conservator assessment of vessel crack stability before any lift",
    "Open damage/discrepancy claim file if cracks confirmed new"
  ]
}

---

Note: All findings are derived from a single photograph. Sensor states, document text, and the pre-shipment condition baseline could not be verified and are explicitly flagged as uncertain. Physical inspection by a conservator is required to confirm damage origin and structural integrity.

HelioLift Incident Review — Duplicate Dispatch Confirmations (Zone A12)

Classification: SEV-2 (regulatory-reportable, no patient harm) · Status: Contained pending durable fix · IC: AI Eng Lead

---

1) Executive Summary

At 02:10 UTC the ledger writer was enabled for 25% of dispatch traffic. Within ~3 minutes, Zone A12 showed 3.7% duplicate dispatch confirmations but only 0.4% double launches. The asymmetry is diagnostic: the launch service deduplicates by (patient_hash, seq) (a stable logical identity) and therefore suppressed almost all duplicate launches, while the notification service deduplicates by idempotency_key, which the writer generates non-deterministically (patientHash:Date.now()). Two writer nodes processing the same logical event produced two distinct keys, so notifications were not collapsed.

Three defects compounded:

1. Non-deterministic idempotency key — identity is wall-clock-based, not content-based.
2. No database-level uniqueness — dispatch_ledger has a non-unique index on (patient_hash, seq); the "append-only" table physically permits duplicate state changes.
3. Fail-open dedup on Redis timeout — the Redis "last seq" gate is the only guard against duplicates, it is racy across nodes, and a timeout (observed on aurora-4) causes the stale-check to be skipped and the event committed anyway.

No patient harm occurred. The launch dedup key (correct identity) protected the safety-critical path. The fix is to make identity deterministic and content-derived, enforce it with a unique constraint + ON CONFLICT DO NOTHING, and demote Redis to an optimization (fail-closed to the DB authority). We can reach 100% ledger traffic within the week behind this guarantee.

---

2) Likely Root Cause

Primary: Identity for an append-only event was minted from Date.now(), so the same logical event received different idempotency keys on different nodes (91f:1716171221102 vs 91f:1716171221188). Any consumer keyed on idempotency_key (notifications) saw two distinct events.

Enabling condition (concurrent writers): During the 25% rollout, retry/failover routed the same logical event to two nodes (aurora-7, aurora-2) within 86 ms. The Redis "last seq" gate is:

• Eventually consistent / racy — both nodes can read lastSeq < 44 before either writes.
• Fail-open — on the aurora-4 timeout, redis.get did not return a guard value, the code path treated it as "no prior seq," and the duplicate seq=44 CONFIRMED was committed (pg_commit_ok immediately follows redis_timeout).

Why 3.7% vs 0.4%:

• Launch path keyed on (patient_hash, seq) → stable identity → ~all dupes suppressed; the residual 0.4% reflects launches that crossed the dedup window or raced the launch service's own check before the first row was visible.
• Notification path keyed on idempotency_key → unstable identity → full 3.7% leaked.

Not the cause: NTP drift (<20 ms, well within tolerance) and "append-only semantics" themselves. The ledger model is sound; its uniqueness invariant was never enforced in storage.

Transaction correctness note: The writer issues BEGIN/COMMIT as separate statements over a pooled connection with no try/catch/ROLLBACK. A throw between BEGIN and COMMIT (e.g., the Redis call after the INSERT) can leak an open transaction or a half-applied Redis state. This is a latent reliability bug independent of the duplicate symptom.

---

3) Immediate Containment (0–4 h, no mission pause)

These are reversible, do not require schema locks, and do not pause emergency traffic.

1. Freeze the rollout at 25%. Do not advance until durable fix ships. (Config flag, no deploy.)
2. Hotfix the idempotency key to deterministic (patientHash:seq:kind) and deploy. This alone collapses duplicate notifications immediately, even before the DB constraint lands. See §5.
3. Make Redis fail-closed. On redis.get timeout/error, do not skip the guard — fall through to the DB-authoritative write path (which, once §6 ships, is idempotent via ON CONFLICT). Until the constraint exists, fail-closed means: route those events to the legacy dispatch_events path for that patient (which has a real PK), preserving the old invariant.
4. Quarantine + reconcile notifications. Run a one-shot job to collapse already-emitted duplicate confirmations by (patient_hash, seq) and suppress pending duplicates in the notification queue.
5. Add a synthetic alert: fire if COUNT(*) > 1 GROUP BY (patient_hash, seq, event_kind) appears in dispatch_ledger within any 5-min window.

Containment exit criterion: duplicate-confirmation rate in A12 < 0.1% over a 60-min window after the deterministic-key hotfix.

---

4) Durable Fix

Layer	Change	Guarantee
Identity	Idempotency key = HMAC/content hash over the logical event (patient_hash, seq, kind) (payload excluded to tolerate retries with cosmetic differences).	Same logical event → same key on every node.
Storage	UNIQUE (patient_hash, seq, event_kind) and UNIQUE (idempotency_key) on dispatch_ledger, created CONCURRENTLY.	DB is the authority; concurrent writers cannot duplicate.
Writer	Single transaction, INSERT ... ON CONFLICT DO NOTHING RETURNING; report written:false on conflict. Wrap in try/catch with ROLLBACK.	Exactly-once append; no leaked transactions.
Cache	Redis demoted to a hint (fast-path skip of obviously-stale events). Source of truth = DB. Fail-closed: on Redis error, proceed to DB write (idempotent).	No fail-open duplicates.
Consumers	Standardize all downstream dedup on (patient_hash, seq, event_kind); treat idempotency_key as an audit/transport token, not the dedup key.	Uniform identity across the system.
Privacy	Replace bare patient_hash with keyed HMAC + rotating epoch salt; add re-identification controls (§9).	Pseudonymization defensible to regulator.

The decisive change is moving the uniqueness invariant into the database. Redis, NTP, and node coordination all become non-load-bearing for correctness.

---

5) TypeScript Patch

import { createHash } from 'node:crypto';

type EventKind = 'REQUESTED' | 'CONFIRMED' | 'LAUNCHED' | 'CANCELLED';

type DispatchEvent = {
  patientHash: string;
  seq: number;
  kind: EventKind;
  payload: Record<string, unknown>;
};

/**
 * Deterministic logical identity for an append-only event.
 * Derived ONLY from (patientHash, seq, kind) so that retries/failover on any
 * node produce the SAME key. Payload is intentionally excluded: cosmetic retry
 * differences (timestamps, trace ids) must not fork identity.
 *
 * If you require payload binding, hash a canonicalized payload behind a feature
 * flag and version the key (v2:) so consumers can migrate.
 */
function idempotencyKey(e: Pick<DispatchEvent, 'patientHash' | 'seq' | 'kind'>): string {
  return (
    'v2:' +
    createHash('sha256')
      .update(`${e.patientHash}\u0000${e.seq}\u0000${e.kind}`)
      .digest('hex')
  );
}

export async function writeDispatchEvent(event: DispatchEvent, ctx: Ctx) {
  const key = idempotencyKey(event);

  // Redis is a HINT ONLY. Never block correctness on it; never fail open.
  // On error we proceed to the DB, which is the authority via UNIQUE + ON CONFLICT.
  let cacheSaysStale = false;
  try {
    const lastSeq = await ctx.redis.get(`last:${event.patientHash}`);
    if (lastSeq && event.seq < Number(lastSeq)) {
      cacheSaysStale = true; // strictly-older is safe to skip; equality must hit DB
    }
  } catch (err) {
    ctx.logger.warn({ patient: event.patientHash, err: String(err) }, 'redis hint unavailable; proceeding to DB');
  }

  if (cacheSaysStale) {
    ctx.logger.info({ key, seq: event.seq }, 'stale event skipped via cache hint');
    return { written: false, reason: 'stale_hint' as const };
  }

  const client = await ctx.pg.connect(); // dedicated connection for the txn
  try {
    await client.query('BEGIN');

    const res = await client.query(
      `INSERT INTO dispatch_ledger
         (ledger_id, patient_hash, seq, event_kind, payload, idempotency_key, writer_node)
       VALUES (gen_random_uuid(), $1, $2, $3, $4, $5, $6)
       ON CONFLICT (patient_hash, seq, event_kind) DO NOTHING
       RETURNING ledger_id`,
      [event.patientHash, event.seq, event.kind, event.payload, key, ctx.nodeId]
    );

    await client.query('COMMIT');

    const written = res.rowCount === 1;

    // Best-effort cache update AFTER commit. Failure here is harmless.
    if (written) {
      ctx.redis
        .set(`last:${event.patientHash}`, String(event.seq), { EX: 600 })
        .catch((err) => ctx.logger.warn({ err: String(err) }, 'cache set failed (non-fatal)'));
    }

    return written
      ? { written: true as const, key }
      : { written: false as const, reason: 'duplicate_suppressed_by_db' as const, key };
  } catch (err) {
    await client.query('ROLLBACK').catch(() => void 0);
    ctx.logger.error({ key, seq: event.seq, err: String(err) }, 'ledger write failed; rolled back');
    throw err; // let the caller's retry policy re-drive; the write is idempotent
  } finally {
    client.release();
  }
}

Why these choices

• ON CONFLICT (patient_hash, seq, event_kind) DO NOTHING makes concurrent double-writes from aurora-7/aurora-2 collapse to one row, regardless of timing or Redis state.
• Strict < for the cache hint (not <=) prevents a stale cache from masking a legitimate equal-seq DB-level idempotency check.
• The dedicated connection + try/catch/ROLLBACK/finally removes the leaked-transaction failure mode.
• RETURNING lets us truthfully report whether we wrote, so the notification service can be driven off the writer's result rather than re-deriving identity.

---

6) SQL Migration Notes

Constraints must be added without locking dispatch (emergency missions cannot pause). Sequence matters: you cannot create a unique index over data that already contains duplicates.

-- STEP 0: Identify existing duplicates introduced during the 02:10–containment window.
-- (Audit artifact for the regulator; export before deleting.)
CREATE TABLE dispatch_ledger_dupe_audit AS
SELECT patient_hash, seq, event_kind, COUNT(*) AS n,
       array_agg(ledger_id ORDER BY created_at) AS ledger_ids,
       array_agg(idempotency_key) AS keys,
       min(created_at) AS first_seen, max(created_at) AS last_seen
FROM dispatch_ledger
GROUP BY patient_hash, seq, event_kind
HAVING COUNT(*) > 1;

-- STEP 1: Deduplicate in place, keeping the earliest row (first writer wins).
-- Run in batches in production to bound lock footprint.
WITH ranked AS (
  SELECT ledger_id,
         row_number() OVER (
           PARTITION BY patient_hash, seq, event_kind
           ORDER BY created_at, ledger_id
         ) AS rn
  FROM dispatch_ledger
)
DELETE FROM dispatch_ledger d
USING ranked r
WHERE d.ledger_id = r.ledger_id
  AND r.rn > 1;

-- STEP 2: Add the logical-identity uniqueness CONCURRENTLY (no table lock).
CREATE UNIQUE INDEX CONCURRENTLY IF NOT EXISTS
  dispatch_ledger_logical_uq
  ON dispatch_ledger (patient_hash, seq, event_kind);

-- STEP 3: Enforce transport-token uniqueness (catches accidental key reuse).
CREATE UNIQUE INDEX CONCURRENTLY IF NOT EXISTS
  dispatch_ledger_idem_uq
  ON dispatch_ledger (idempotency_key);

-- STEP 4: Drop the now-redundant non-unique index after the unique one is valid.
DROP INDEX CONCURRENTLY IF EXISTS dispatch_ledger_patient_seq_idx;

-- STEP 5: Guard append-only semantics at the storage layer.
-- Block UPDATE/DELETE on the ledger except via an explicit, audited admin role.
CREATE OR REPLACE FUNCTION ledger_is_append_only() RETURNS trigger AS $$
BEGIN
  RAISE EXCEPTION 'dispatch_ledger is append-only (% blocked)', TG_OP;
END;
$$ LANGUAGE plpgsql;

CREATE TRIGGER dispatch_ledger_no_mutate
  BEFORE UPDATE OR DELETE ON dispatch_ledger
  FOR EACH ROW EXECUTE FUNCTION ledger_is_append_only();
-- NOTE: install this trigger AFTER STEP 1 dedup completes.

Operational cautions

• CREATE UNIQUE INDEX CONCURRENTLY cannot run inside a transaction block and will fail (leaving an INVALID index) if duplicates remain — hence Steps 0–1 first. If it fails, DROP INDEX CONCURRENTLY the invalid index and re-dedup.
• Run Step 1 in keyset-paginated batches (e.g., 10k rows) during low-traffic minutes to keep autovacuum and replication lag bounded.
• Keep dispatch_events writable as the fallback path until the ledger is at 100% and validated; do not drop it this week.
• After cutover, consider partitioning dispatch_ledger by created_at month to keep the unique-index maintenance cost flat.

---

7) Python Replay-Safety Validator

Validates that the ledger can be deterministically replayed into a single, consistent current state per patient — the core promise of the new architecture. Run pre-cutover and continuously in CI/canary.

#!/usr/bin/env python3
"""
replay_validator.py — verifies dispatch_ledger is safe to replay.

Checks:
  1. Logical-identity uniqueness: no duplicate (patient_hash, seq, event_kind).
  2. Idempotency-key uniqueness and determinism (key derivable from identity).
  3. Sequence monotonicity / no gaps that imply lost events (configurable).
  4. State-machine legality: REQUESTED -> CONFIRMED -> LAUNCHED, with CANCELLED
     permitted from any non-terminal state. No transition after a terminal state.
  5. Deterministic fold: replaying in (seq) order yields exactly one final state.

Exit code 0 = replay-safe. Non-zero = violations (printed as JSON for audit).
"""
from __future__ import annotations
import hashlib
import json
import sys
from collections import defaultdict
from dataclasses import dataclass, field
from typing import Iterable

KIND_ORDER = {"REQUESTED": 0, "CONFIRMED": 1, "LAUNCHED": 2, "CANCELLED": 99}
TERMINAL = {"LAUNCHED", "CANCELLED"}
LEGAL_TRANSITIONS = {
    None: {"REQUESTED"},
    "REQUESTED": {"CONFIRMED", "CANCELLED"},
    "CONFIRMED": {"LAUNCHED", "CANCELLED"},
    "LAUNCHED": set(),      # terminal
    "CANCELLED": set(),     # terminal
}


@dataclass
class LedgerRow:
    patient_hash: str
    seq: int
    event_kind: str
    idempotency_key: str
    payload: dict


def expected_key(row: LedgerRow) -> str:
    h = hashlib.sha256(

HelixQueue: Duplicate Assignments & Missing Audit Rows — Senior Engineering Response

Context Assumptions (state explicitly)

• Batches arrive as Redis stream entries; workers consume via a consumer group; HelixQueue's scheduler reads, assigns to a GPU worker, writes a batch_assignments row and an audit_log row.
• "International sample identifiers" means non-ASCII Unicode strings now appear in IDs/keys.
• Current assignment likely uses a SELECT ... then INSERT/UPDATE pattern without SELECT FOR UPDATE/upsert, and Redis XREADGROUP without disciplined XACK/XAUTOCLAIM.
• "Missing audit rows" implies the audit write is in a separate transaction or fire-and-forget, not atomic with the assignment.

---

1) Likely Root Causes (ranked by probability)

#	Root cause	Why it fits the symptoms	Confidence
1	Unicode non-normalized keys used for dedup/idempotency. Same logical ID arrives as NFC vs NFD (or with differing case/width), so dedup checks miss and produce a second assignment.	Bug appeared exactly when international IDs were added. Two byte-different-but-equal strings defeat any equality-based guard.	High
2	Non-atomic claim: read-modify-write race (SELECT unassigned → app logic → INSERT assignment) without FOR UPDATE SKIP LOCKED or a unique constraint. Two scheduler iterations / two pods grab the same batch under load.	Duplicates only under heavy load is the classic lost-update signature.	High
3	Redis consumer-group redelivery on restart: messages read but not XACKed before a worker dies are redelivered (or XAUTOCLAIMed), reprocessed, and create a second assignment because DB side isn't idempotent.	"Workers restart mid-batch" is the precise trigger for pending-entry redelivery.	High
4	Audit write outside the assignment transaction (separate commit, async task, or after Redis ack). On crash between commits, assignment exists but audit row is lost.	Explains missing audit rows specifically tied to restarts.	Medium-High
5	PostgreSQL collation / citext / case-fold mismatch on the ID column, or an index using a collation that treats distinct Unicode forms as different, so a UNIQUE constraint silently allows near-duplicates.	Secondary to #1; surfaces if a constraint exists but uses the wrong normalization.	Medium
6	Idempotency key derived from mutable/locale-dependent data (e.g., includes timestamp, truncated string, or str.lower() that's locale-broken for non-ASCII).	Would intermittently change keys for the same logical work.	Low-Medium

Primary hypothesis: #1 + #2 + #3 compound — non-normalized keys remove the safety net, and the claim/redelivery race exercises it. #4 is an independent atomicity bug producing the missing-audit symptom.

---

2) Minimal Reproduction Plan

Goal: deterministically reproduce both symptoms in CI, fast.

A. Unicode dedup miss (no load needed)

nfc = "Sämple-Ω-001"                     # composed
nfd = unicodedata.normalize("NFD", nfc)  # decomposed, byte-different
assert nfc != nfd                        # different bytes
submit_batch(sample_id=nfc)
submit_batch(sample_id=nfd)              # should be deduped; currently isn't
assert assignment_count(logical_id) == 1 # FAILS today

B. Concurrent claim race

• Seed 1 unassigned batch.
• Launch N=50 scheduler coroutines/threads calling assign_next() concurrently (use asyncio.gather or a ThreadPoolExecutor; add a pg_sleep/asyncio.sleep between the SELECT and INSERT to widen the window).
• Assert exactly one assignment row. Currently >1.

C. Crash-during-batch redelivery

• Use a test Redis with a consumer group.
• Worker reads an entry (XREADGROUP), writes assignment, does not XACK, then os._exit(1) (simulate crash).
• Restart, run XAUTOCLAIM of pending entries.
• Assert assignment processed exactly once and audit row present.

D. Atomicity of audit

• Inject a fault (monkeypatch) that raises after the assignment commit but before the audit write.
• Assert: with the redesign, either both rows exist or neither (no orphan assignment).

Wrap A–D as pytest cases; B/C run under pytest -p no:randomly with a real Postgres + Redis via testcontainers. Target total runtime < 60s.

---

3) Transaction-Safe Redesign

Core principles

1. Canonicalize all external identifiers at the boundary: unicodedata.normalize("NFC", s).strip(), reject empty/control chars. Store the canonical form; keep the raw form in a separate column for forensics.
2. Deterministic idempotency key derived only from canonical, immutable fields.
3. Single atomic transaction writes assignment + audit + state transition. Redis XACK happens only after the DB commit succeeds.
4. Explicit state machine with DB-enforced legal transitions.
5. Claim via INSERT ... ON CONFLICT DO NOTHING keyed on idempotency key — the database is the arbiter, not application logic.

Idempotency key

def make_idempotency_key(batch_id: str, sample_id: str, attempt_epoch: str) -> str:
    canon = lambda s: unicodedata.normalize("NFC", s).strip()
    payload = "\x1f".join([canon(batch_id), canon(sample_id), attempt_epoch])
    return hashlib.sha256(payload.encode("utf-8")).hexdigest()

• attempt_epoch is a stable per-batch token (e.g., the Redis stream message ID), not wall-clock — so redelivery of the same message yields the same key, while a legitimately new submission yields a new key.

State machine

PENDING ──claim──▶ ASSIGNED ──start──▶ RUNNING ──finish──▶ COMPLETED
   ▲                  │                    │
   └──────release─────┴────────fail────────┴──▶ FAILED ──retry──▶ PENDING

Illegal transitions rejected by a CHECK + trigger (below). A worker restart leaves a row in ASSIGNED/RUNNING with a lease_expires_at; a reaper releases expired leases back to PENDING.

---

4) PostgreSQL Schema Changes

-- 0. Normalization-safe ID columns. citext only case-folds; it does NOT
--    Unicode-normalize. So we store an app-normalized canonical column.
CREATE TYPE batch_state AS ENUM
  ('PENDING','ASSIGNED','RUNNING','COMPLETED','FAILED');

CREATE TABLE batches (
    id                BIGINT GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    sample_id_raw     TEXT NOT NULL,                 -- exactly as received
    sample_id_canon   TEXT NOT NULL,                 -- NFC-normalized, trimmed
    state             batch_state NOT NULL DEFAULT 'PENDING',
    worker_id         TEXT,
    lease_expires_at  TIMESTAMPTZ,
    attempt           INT NOT NULL DEFAULT 0,
    created_at        TIMESTAMPTZ NOT NULL DEFAULT now(),
    updated_at        TIMESTAMPTZ NOT NULL DEFAULT now(),
    CONSTRAINT sample_canon_nonempty CHECK (length(sample_id_canon) > 0)
);

-- Enforce uniqueness on the canonical form (prevents NFC/NFD twins).
CREATE UNIQUE INDEX uq_batches_sample_canon ON batches (sample_id_canon);

-- 1. Assignments: the idempotency key is the dedup arbiter.
CREATE TABLE batch_assignments (
    id               BIGINT GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    batch_id         BIGINT NOT NULL REFERENCES batches(id),
    worker_id        TEXT   NOT NULL,
    idempotency_key  TEXT   NOT NULL,
    stream_msg_id    TEXT   NOT NULL,
    state            batch_state NOT NULL DEFAULT 'ASSIGNED',
    created_at       TIMESTAMPTZ NOT NULL DEFAULT now(),
    CONSTRAINT uq_assignment_idem UNIQUE (idempotency_key)  -- THE guard
);

-- One active (non-terminal) assignment per batch.
CREATE UNIQUE INDEX uq_one_active_assignment
    ON batch_assignments (batch_id)
    WHERE state IN ('ASSIGNED','RUNNING');

-- 2. Audit log, written in the SAME transaction.
CREATE TABLE audit_log (
    id               BIGINT GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    batch_id         BIGINT NOT NULL REFERENCES batches(id),
    assignment_id    BIGINT REFERENCES batch_assignments(id),
    from_state       batch_state,
    to_state         batch_state NOT NULL,
    worker_id        TEXT,
    idempotency_key  TEXT NOT NULL,
    detail           JSONB NOT NULL DEFAULT '{}'::jsonb,
    created_at       TIMESTAMPTZ NOT NULL DEFAULT now(),
    -- Make audit idempotent too, so retries don't double-log.
    CONSTRAINT uq_audit_event UNIQUE (idempotency_key, to_state)
);

-- 3. Enforce legal transitions at the DB level.
CREATE OR REPLACE FUNCTION enforce_batch_transition() RETURNS trigger AS $$
BEGIN
  IF OLD.state = NEW.state THEN RETURN NEW; END IF;
  IF NOT (
       (OLD.state='PENDING'   AND NEW.state IN ('ASSIGNED'))
    OR (OLD.state='ASSIGNED'  AND NEW.state IN ('RUNNING','PENDING','FAILED'))
    OR (OLD.state='RUNNING'   AND NEW.state IN ('COMPLETED','FAILED','PENDING'))
    OR (OLD.state='FAILED'    AND NEW.state IN ('PENDING'))
  ) THEN
    RAISE EXCEPTION 'illegal transition % -> %', OLD.state, NEW.state;
  END IF;
  NEW.updated_at = now();
  RETURN NEW;
END $$ LANGUAGE plpgsql;

CREATE TRIGGER trg_batch_transition
  BEFORE UPDATE OF state ON batches
  FOR EACH ROW EXECUTE FUNCTION enforce_batch_transition();

Key points:

• uq_assignment_idem makes duplicate assignment physically impossible.
• uq_one_active_assignment (partial unique) guarantees only one in-flight assignment per batch even if keys differ.
• uq_audit_event makes the audit insert idempotent so retries can't double-write and crashes can't drop it (it's in the same tx).
• Uniqueness on sample_id_canon kills the NFC/NFD twin problem.

---

5) Corrected Scheduler Loop (Python pseudocode)

import unicodedata, hashlib
from sqlalchemy import text

LEASE_SECONDS = 120

def canon(s: str) -> str:
    s = unicodedata.normalize("NFC", s).strip()
    if not s or any(unicodedata.category(c).startswith("C") for c in s):
        raise ValueError("invalid identifier")
    return s

def idem_key(sample_canon: str, stream_msg_id: str) -> str:
    payload = f"{sample_canon}\x1f{stream_msg_id}".encode("utf-8")
    return hashlib.sha256(payload).hexdigest()

async def run_scheduler(group, consumer, worker_id):
    while not shutdown.is_set():
        # 1. Reclaim crashed peers' pending work (idempotent by design).
        await redis.xautoclaim(STREAM, group, consumer,
                               min_idle_time=LEASE_SECONDS*1000, start_id="0-0",
                               count=64)
        # 2. Read new + reclaimed entries.
        entries = await redis.xreadgroup(group, consumer,
                                         {STREAM: ">"}, count=32, block=2000)
        for msg_id, fields in entries:
            try:
                await process_one(msg_id, fields, worker_id)
                await redis.xack(STREAM, group, msg_id)   # ACK only after commit
            except RetryableError:
                pass        # leave pending; xautoclaim will redeliver
            except PoisonError:
                await dead_letter(msg_id, fields)
                await redis.xack(STREAM, group, msg_id)

async def process_one(msg_id, fields, worker_id):
    sample = canon(fields["sample_id"])
    key = idem_key(sample, msg_id)

    async with engine.begin() as tx:          # single atomic transaction
        # Upsert batch by canonical id; lock the row.
        batch = await tx.execute(text("""
            INSERT INTO batches (sample_id_raw, sample_id_canon)
            VALUES (:raw, :canon)
            ON CONFLICT (sample_id_canon) DO UPDATE
              SET updated_at = now()
            RETURNING id, state
        """), {"raw": fields["sample_id"], "canon": sample}).one()

        # Atomic claim: the unique idempotency_key is the arbiter.
        res = await tx.execute(text("""
            INSERT INTO batch_assignments
              (batch_id, worker_id, idempotency_key, stream_msg_id, state)
            VALUES (:b, :w, :k, :m, 'ASSIGNED')
            ON CONFLICT (idempotency_key) DO NOTHING
            RETURNING id
        """), {"b": batch.id, "w": worker_id, "k": key, "m": msg_id})
        row = res.first()

        if row is None:
            # Already assigned by us before a crash -> safe no-op (idempotent).
            return

        assignment_id = row.id

        # Transition batch state with row lock (FOR UPDATE via the trigger path).
        await tx.execute(text("""
            UPDATE batches
               SET state='ASSIGNED', worker_id=:w,
                   lease_expires_at = now() + (:lease || ' seconds')::interval,
                   attempt = attempt + 1
             WHERE id=:b AND state IN ('PENDING','FAILED')
        """), {"w": worker_id, "lease": LEASE_SECONDS, "b": batch.id})

        # Audit IN THE SAME TX, idempotent on (key, to_state).
        await tx.execute(text("""
            INSERT INTO audit_log
              (batch_id, assignment_id, from_state, to_state,
               worker_id, idempotency_key, detail)
            VALUES (:b, :a, :frm, 'ASSIGNED', :w, :k, :d)
            ON CONFLICT (idempotency_key, to_state) DO NOTHING
        """), {"b": batch.id, "a": assignment_id, "frm": batch.state,
               "w": worker_id, "k": key, "d": json_dumps({"msg_id": msg_id})})
        # tx commits here. Only now do we XACK (in caller).

# Lease reaper (separate task): release expired in-flight work.
async def reap_expired():
    while not shutdown.is_set():
        async with engine.begin() as tx:
            stale = await tx.execute(text("""
                UPDATE batches SET state='PENDING', worker_id=NULL,
                                   lease_expires_at=NULL
                 WHERE state IN ('ASSIGNED','RUNNING')
                   AND lease_expires_at < now()
              RETURNING id, sample_id_canon
            """)).all()
            for b in stale:
                await tx.execute(text("""
                    UPDATE batch_assignments SET state='FAILED'
                     WHERE batch_id=:b AND state IN ('ASSIGNED','RUNNING')
                """), {"b": b.id})
        await asyncio.sleep(10)

Correctness argument:

• Exactly-once effect: the assignment INSERT is the commit point; redelivery hits ON CONFLICT DO NOTHING → no duplicate. XACK after commit ⇒ no lost work, at most safe reprocessing.
• Atomic audit: same transaction ⇒ assignment and audit are all-or-nothing.
• Crash safety: a crash before commit leaves the message pending → xautoclaim redelivers → idempotent replay. A crash after commit but before XACK → redelivery → no-op replay.

---

6) Migration & Rollout Plan (this week)

Day 1 — Schema (online, backward-compatible)

• Add new columns/tables with IS NULL defaults; do not drop anything yet.
• Backfill sample_id_canon = normalize(sample_id_raw) in batches of ~5k rows (WHERE sample_id_canon IS NULL) to avoid long locks.
• Detect existing twins before adding the unique index:

  SELECT sample_id_canon, count(*) FROM batchesGROUP BY sample_id_canon HAVING count(*) > 1;


  Resolve duplicates manually, then CREATE UNIQUE INDEX CONCURRENTLY.

Day 2 — Dual-write, read-old

• Deploy code that writes idempotency keys + audit in the new atomic path behind a feature flag (HELIX_IDEMPOTENT_ASSIGN). Keep old reader for compatibility.
• Run reproduction suite (Section 2) against staging.

Day 3 — Canary

• Enable flag for 5% of workers (one consumer). Watch dashboards (Section 7) for assign_conflict_total (should be > 0 and rising = guard working) and zero audit_missing_total.

Day 4 — Ramp

• 25% → 50% → 100% as metrics stay clean for ≥2h at each step.

Day 5 — Cleanup

• Add the partial unique index and transition trigger if deferred.
• Remove old non-atomic code path; keep the flag as a kill-switch for one release.

Rollback: flip flag off → reverts to legacy path; new constraints are additive and don't break old writes (old path also writes canonical column via a small shim). Keep the CREATE INDEX CONCURRENTLY reversible with DROP INDEX CONCURRENTLY.

---

7) Observability Signals & Alerts

Metrics (Prometheus naming)

Metric	Type	Meaning / Use
helix_assign_conflict_total	counter	ON CONFLICT DO NOTHING hits = redelivery/dedup working. Sudden spike ⇒ excessive redelivery.
helix_duplicate_active_assignments	gauge	result of a periodic query for batches with >1 active assignment. Must be 0.
helix_audit_missing_total	counter	assignments lacking matching audit row (periodic reconciliation). Alert on >0.
helix_stream_pending	gauge	XPENDING count per consumer. Rising ⇒ stuck workers.
helix_lease_reaped_total	counter	leases reclaimed; correlates with worker restarts.
helix_process_latency_seconds	histogram	process_one duration.
helix_id_normalization_changed_total	counter	inputs where raw ≠ canon. Confirms international IDs are flowing.
helix_xack_after_commit_failures	counter	XACK failures post-commit (rare but causes safe reprocessing).

Reconciliation queries (run every 1–5 min)

-- Duplicate active assignments (should always be empty)
SELECT batch_id FROM batch_assignments
 WHERE state IN ('ASSIGNED','RUNNING')
 GROUP BY batch_id HAVING count(*) > 1;

-- Assignment without audit
SELECT a.id FROM batch_assignments a
 LEFT JOIN audit_log l ON l.assignment_id = a.id
 WHERE l.id IS NULL;

Alerts

• helix_duplicate_active_assignments > 0 → page (SEV2). Indicates constraint or logic regression.
• helix_audit_missing_total > 0 (5m) → page.
• helix_stream_pending growing for >10m → warn (stuck consumer / poison message).
• rate(helix_lease_reaped_total[5m]) abnormally high → warn (worker crash loop).
• Log every ValueError from canon() with the raw bytes (hex) for forensics; alert on rate spike (malformed IDs upstream).

---

8) Risk Register

ID	Risk	Likelihood	Impact	Mitigation	Owner
R1	Backfill reveals existing NFC/NFD duplicates blocking the unique index	High	Med	Pre-scan query Day 1; manual/automated merge before CREATE UNIQUE INDEX CONCURRENTLY	DBA
R2	attempt_epoch/stream_msg_id not stable across legitimate resubmits → false dedup (work skipped)	Med	High	Key on stream message ID (stable per delivery); legitimately new work gets a new message ID. Add reconciliation alert for stalled PENDING batches	Backend
R3	XACK after commit fails (Redis blip) → safe reprocessing but extra load	Med	Low	Idempotent replay handles it; metric xack_after_commit_failures; retry XACK with backoff	Backend
R4	Transition trigger rejects a legitimate concurrent path, raising errors under load	Low	Med	Make UPD
